Dim:11.5*70mm
Material: ABS plastic, KDF55
Life rating up to 10000 gallons or 6 month
Thread :G ½’’ Male/Female
Replacement Filter: KDF
Color: White/Chrome
Product Description
Effective for both hot and cold water.
Contains bacteriostatic KDF55 as well as Nutshell activated carbon
Reduces up to 95% of chlorine
Reduces chemical absorption and vapor inhalation
Reduces 95% of water soluble heavy metals
Reduces damage to hair and skin
Eliminates foul tastes and odors
Reduces lime, scale, mold and fungi in showers
5 stages of filtration:
1st stage – Microfiltration: Remove sediment, rust, sand, and other solids
2nd stage – KDF: Remove chlorine, hydrogen sulfide, microorganisms, scale and water-soluble heavy metals such as lead, mercury, and iron; kill bacteria and inhibit the growth of bacteria, algae, and fungi.
3rd stage – Microfiltration: Separate KDF and Nutshell activated carbon
4th stage – Nutshell Activated Carbon: Further remove chlorine, organic contaminants, and etc
5th stage – Microfiltration: Remove the carbon grains

INSTALLATION

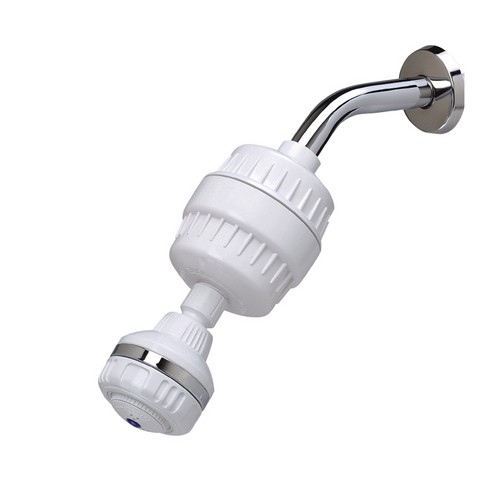

1. Remove the showerhead from the shower arm
2. Screw the ECO-501 Shower filter onto the shower arm
3. Screw the showerhead onto the ECO-501 shower filter
4. If leaks appear tighten,reinstall or use Teflon tape
5. Do not use with Shut-off valve
OPERATION
BEFORE ENTERING THE SHOWER
1. Activate the filter by turning the shower-water to “full-hot’’
2. Cool to desired temperature before entering the shower. To enure over 95% free-chlorine removal. replace the model Filter Cartridge every. 6 month or 10000 gallons. Whichever comes first
MAINTENANCE
Perform the following procedures periodically in order to ensure proper filtration performance and water flow:
1. Open by unscrewing filter housing Halves, counter clockwise
2. Remove and reverse the ECO-501 Cartridge ,Check that the O-Rings located inside each of housing, Halves are properly seated to the O-Rings will hold them in place.)
3. Close by screwing filter housing Halves clockwise.
4. This procedure may be repeated as necessary

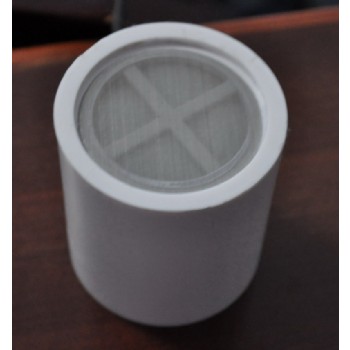

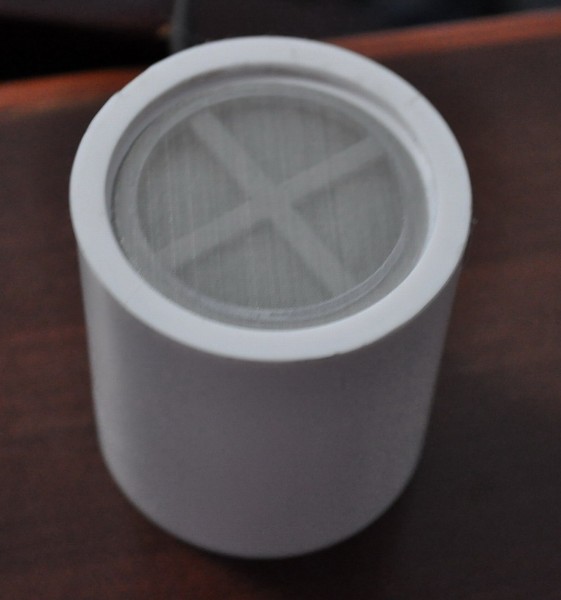

ECO-501 CARTIDGE REPLACEMENT:
Replace every 6 months according to individual water conditions by performing the following procedure:
1. Open by unscrewing filter housing Halves, counter clockwise
2 Remove and replace the used filter with the new. Check that the O-Ring located inside each of the Shower Filter housing Halves is properly seated in the O-Ring Channel.(Note: A small amount of Vaseline applied in the O-Ring Channel will hold the O-ring in place)
3. Close by screwing filter housing Halves clockwise.
REMINDER
Is designed to remind you to change the filter cartridge 6 months
1. Use a pen to till out the installation and replacement date
2. Peel sticker off of backing and apply to a corner of a dry mirror (or any glass surface)
Performance Data:
Shower Filter Model ECO-501
Rated Service Flow-9.5 Liters per minute/2.5 gallons per minute
Rated service Life at 95% free chlorine removal-37950 liters/10000 Gallons
Maximum working pressure-860 kilo pascals/125 pounds per square inch
Maximum operating temperature-49°Celsius/ 120 Fahenheit
Installation- Attaches to shower-arm. No Tools Required
Notes:
While testing was performed under standard laboratory condition, actual performance may vary
This system is not intended to used as a drinking water treatment unit
Both the system and installation must comply with applicable state and local regulations.
