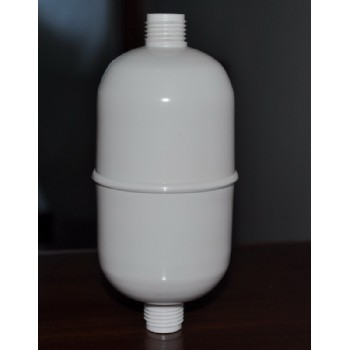

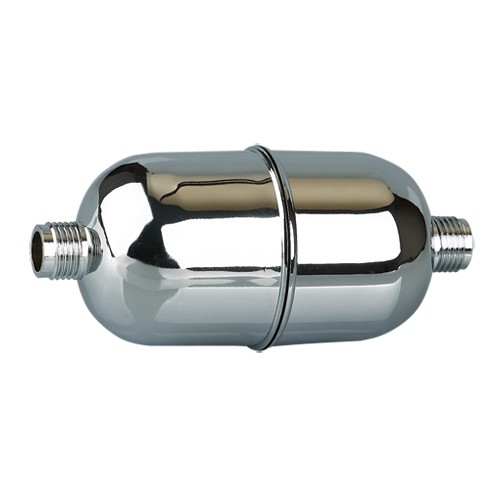

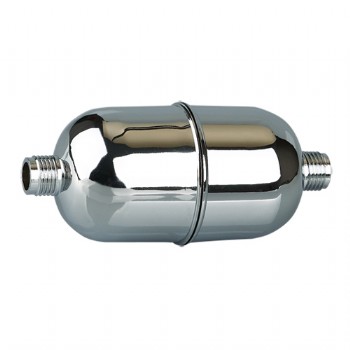

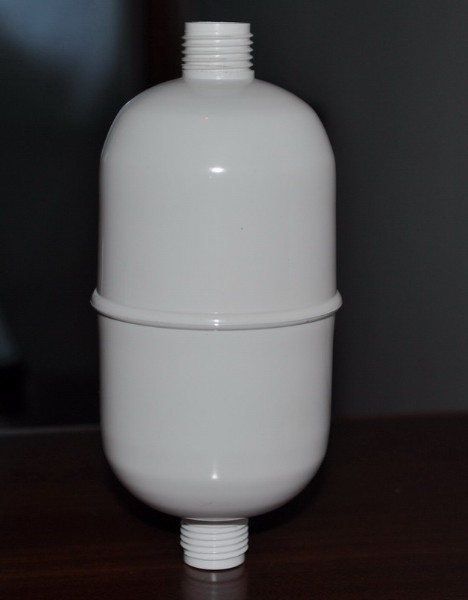

KDF55 chlorine shower filter
ItemNo.: ECO-504
Ultra-strong housing shower filter
Dimensions:165 x 70mm
Material: ABS plastic, KDF55 and carbon cartridge.
Life rating up to 10000 gallons or 6 month
Thread :G ½’’male
Replacement Filter: KDF and carbon cartridge
Color: White/Chrome
Product Describe
Effective for both hot and cold water.
Contains bacteriostatic KDF55 as well as Nutshell activated carbon
Reduces up to 95% of chlorine
Reduces chemical absorption and vapor inhalation
Reduces 95
INSTALLATION

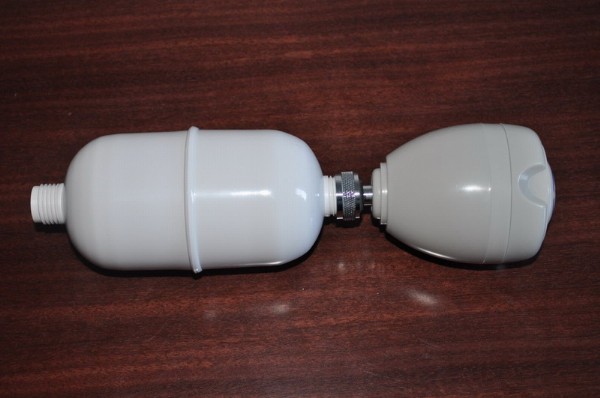

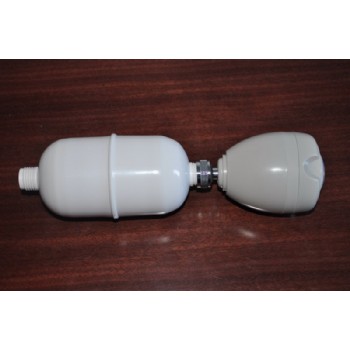

1. Remove the showerhead from the shower arm
2. Screw the ECO-504 Shower filter onto the shower arm
3. Screw the showerhead onto the ECO-504 shower filter
4. If leadks apper tighten,reinstall or use Teflon tape
5. Do not use with Shut-off valve
OPERATION
BEFORE ENTERING THE SHOWER
1. Activate the filter by turning the shower-water to “full-hot’’
2. Cool to desired temperature before entering the shower. To enure over 95% free-chlorine removal. replace the model Filter Cartridge every. 6 month or 10000 gallons. Whichever comes first
MAINTENANCE
Perform the following procedures periodically in order to ensure proper filtration performance and water flow:
2. Remove and reverse the ECO-504 Cartridge ,Check that the O-Rings located inside each of housing, Halves are properly seated to the O-Rings will hold them in place.)
3. Close by screwing filter housing Halves clockwise.
4. This procedure may be repeated as necessary
ECO-504 CARTIDGE REPLACEMENT:
Replace every 6 months according to individual water conditions by performing the following procedure:
1. Open by unscrewing filter housing Halves, counter clockwise
2 Remove and replace the used filter with the new. Check that the O-Ring located inside each of the Shower Filter housing Halves is properly seated in the O-Ring Channel.(Note: A small amount of Vaseline applied in the O-Ring Channel will hold the O-ring in place)
3. Close by screwing filter housing Halves clockwise.
REMINDER
Is designed to remind you to change the filter cartridge 6 months
1. Use a pen to till out the installation and replacement date
2. Peel sticker off of backing and apply to a corner of a dry mirror (or any glass surface)
Performance Data:
Shower Filter Model ECO-504
Rated Service Flow-9.5 Liters per minute/2.5 gallons per minute
Rated service Life at 95% free chlorine removal-37950 liters/10000 Gallons
Maximum working pressure-860 kilo pascals/125 pounds per square inch
Maximum operating temperature-49°Celsius/ 120 Fahenheit
Installation- Attaches to shower-arm. No Tools Required
Notes:
While testing was performed under standard laboratory condition, actual performance may vary
This system is not intended to used as a drinking water treatment unit
Both the system and installation must comply with applicable state and local regulations.
Reduces damage to hair and skin
Eliminates foul tastes and odors
Reduces lime, scale, mold and fungi in showers
5 stages of filtration:
1st stage – Microfiltration: Remove sediment, rust, sand, and other solids
2nd stage – KDF: Remove chlorine, hydrogen sulfide, microorganisms, scale and water-soluble heavy metals such as lead, mercury, and iron; kill bacteria and inhibit the growth of bacteria, algae, and fungi.
3rd stage – Microfiltration: Separate KDF and Nutshell activated carbon
4th stage – Nutshell Activated Carbon: Further remove chlorine, organic contaminants, and etc
5th stage – Microfiltration: Remove the carbon grains
