1.       Remove the showerhead from the shower arm

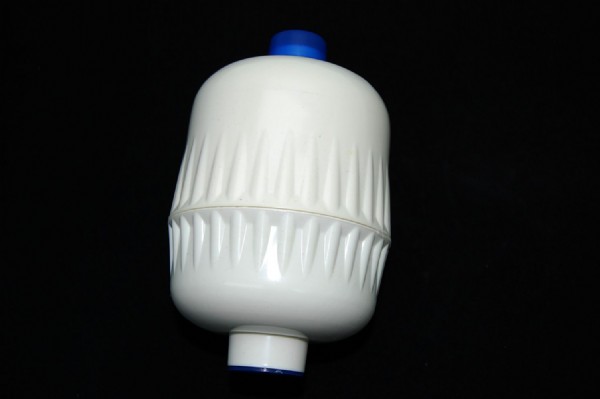

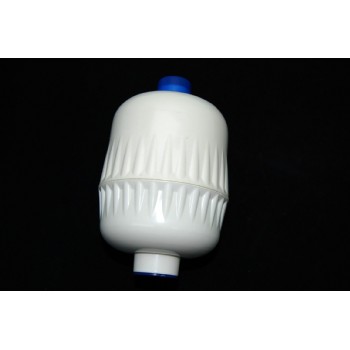

2.       Screw the ECO-505 Shower filter onto the shower arm

3.       Screw the showerhead onto the ECO-505 shower filter

4.       If leaks appear tighten,reinstall or use Teflon tape

5.       Do not use with Shut-off valve

1.       Activate the filter by turning the shower-water to “full-hot’’

2.       Cool to desired temperature before entering the shower. To enure over 95% free-chlorine removal. replace the model Filter Cartridge every. 6 month or 10000 gallons. Whichever comes first

Perform the following procedures periodically in order to ensure proper filtration performance and water flow:

4.       This procedure may be repeated as necessary

Replace every 6 months according to individual water conditions by performing the following procedure:

1. Open by unscrewing filter housing Halves, counter clockwise

2         Remove and replace the used filter with the new. Check that the O-Ring located inside each of the Shower Filter housing Halves is properly seated in the O-Ring Channel.(Note: A small amount of Vaseline applied in the O-Ring Channel will hold the O-ring in place)

3.       Close by screwing filter housing Halves clockwise.

Is designed to remind you to change the filter cartridge 6 months

1.       Use a pen to till out the installation and replacement date

2.       Peel sticker off of backing and apply to a corner of a dry mirror (or any glass surface)

Rated Service Flow-9.5 Liters per minute/2.5 gallons per minute

Rated service Life at 95% free chlorine removal-37950 liters/10000 Gallons

Maximum working pressure-860 kilo pascals/125 pounds per square inch

Maximum operating temperature-49°Celsius/ 120 Fahenheit

Installation- Attaches to shower-arm. No Tools Required

While testing was performed under standard laboratory condition, actual performance may vary

This system is not intended to used as a drinking water treatment unit

Both the system and installation must comply with applicable state and local regulations.
