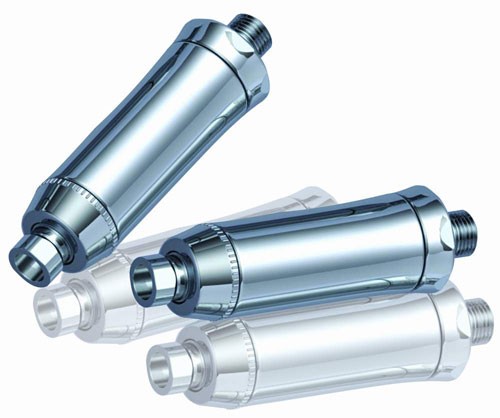

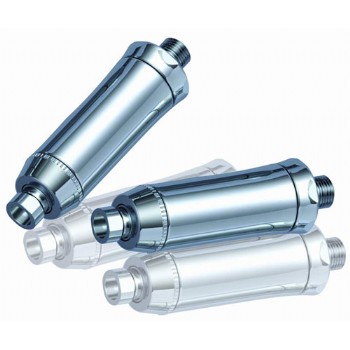

Shower Filter
Remove chlorine shower Filter
ItemNo.: ECO-506
Water filter for shower
Dimensions:52 x 174.5 mm
Material: ABS plastic, KDF and carbon cartridge.
Life rating up to 10000 gallons or 6 month,depend on water quality
Thread :G ½’’ Male/Female
Replace Filter: KDF55 and carbon cartridge
Working pressure:0.1-Mpa-0.4Mpa
Working temperature:5-38°C
Water flow rate: more than 2.0gpm/minute
Shower filter Benefits:
Copper-zinc granules neutralizes chlorine without adding chemicals to water
More thorough filtration, helps filter last longer
Reproduces the natural conditions that create pi water
Conditions the water without the use of salt
Designed to last
Choose the shower setting you prefer
INSTALLATION
1. Remove the showerhead from the shower arm
2. Screw the ECO-506 Shower filter onto the shower arm
3. Screw the shower hose onto the ECO-506 shower filter
4. If leadks apper tighten,reinstall or use Teflon tape
5. Do not use with Shut-off valve
OPERATION
BEFORE ENTERING THE SHOWER
1. Activate the filter by turning the shower-water to “full-hot’’
2. Cool to desired temperature before entering the shower. To enure over 95% free-chlorine removal. replace the model Filter Cartridge every. 6 month or 10000 gallons. Whichever comes first
MAINTENANCE
Perform the following procedures periodically in order to ensure proper filtration performance and water flow:
2. Remove and reverse the ECO-506 Cartridge ,Check that the O-Rings located inside each of housing, Halves are properly seated to the O-Rings will hold them in place.)
3. Close by screwing filter housing Halves clockwise.
4. This procedure may be repeated as necessary
ECO-506 CARTIDGE REPLACEMENT:
Replace every 6 months according to individual water conditions by performing the following procedure:
1. Open by unscrewing filter housing Halves, counter clockwise
2 Remove and replace the used filter with the new. Check that the O-Ring located inside each of the Shower Filter housing Halves is properly seated in the O-Ring Channel.(Note: A small amount of Vaseline applied in the O-Ring Channel will hold the O-ring in place)
3. Close by screwing filter housing Halves clockwise.
REMINDER
Is designed to remind you to change the filter cartridge 6 months
1. Use a pen to till out the installation and replacement date
2. Peel sticker off of backing and apply to a corner of a dry mirror (or any glass surface)
Performance Data:
Shower Filter Model ECO-506
Rated Service Flow-9.5 Liters per minute/2.5 gallons per minute
Rated service Life at 95% free chlorine removal-37950 liters/10000 Gallons
Maximum working pressure-860 kilo pascals/125 pounds per square inch
Maximum operating temperature-49°Celsius/ 120 Fahenheit
Installation- Attaches to shower-arm. No Tools Required
Notes:
While testing was performed under standard laboratory condition, actual performance may vary
This system is not intended to used as a drinking water treatment unit
Both the system and installation must comply with applicable state and local regulations.
