Filtered shower handles

Shower Filter

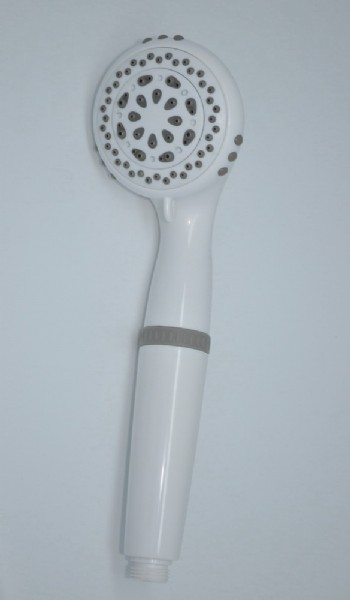

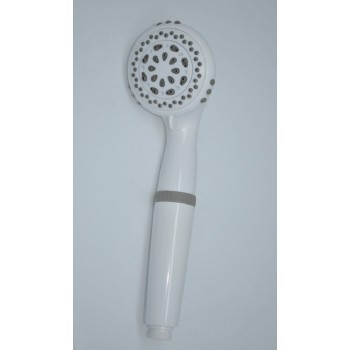

5 Pure Spray Filtered Shower Handles

ItemNo.: ECO-510

5-Purespray Setting handles shower filtered

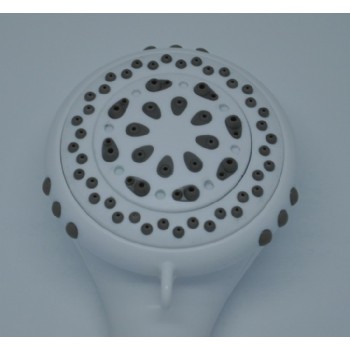

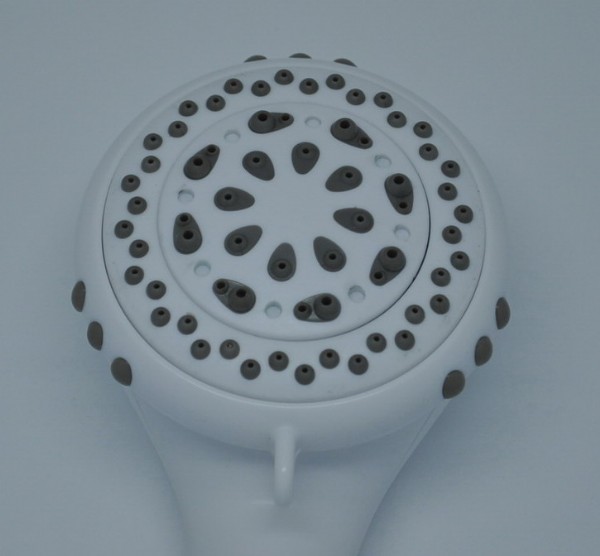

5-Way Adjustable showerhead from fine to full massage spray.

Fine Mist, Fine/Full Spray, Full Spray, Full /Massage Spray. Massage Spray.
Brass Swivel-Ball for easy mounting and durability

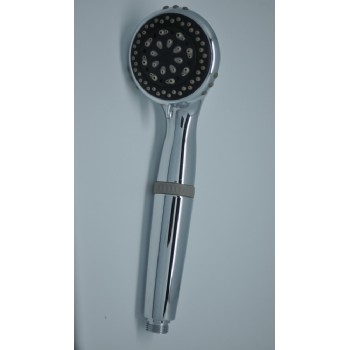

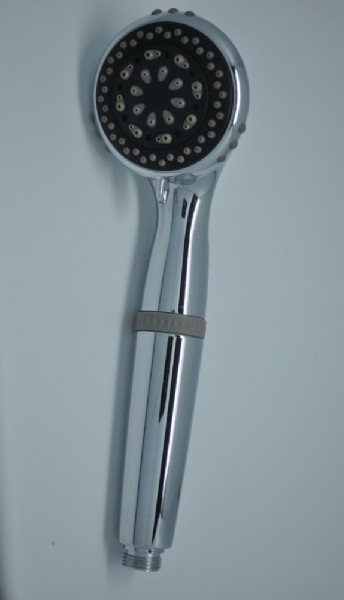

Available in White or Chrome
Built-In Filtration System with HRC Replaceable filter

Meet NSF/ANSI Standards 177 for chlorine reduction, with 95% chlorine removal after 3000 gallons of usage

Back

Filtered Shower Handles - Style and function underscore ergonomically balanced filtered shower handles. By uniting the features of the All-In-One with the convenience and versatility of a shower handle, a new standard is created. We uncompromising approach to design, quality, and filtration performance has produced the finest of all shower handles

Includes KDF-55 and Chlorgon for best performance across a wide range of shower temperatures Removes 95% of chlorine from your shower water

Water flow is 2.5 gallons per minute (Standard flow rate for most shower heads, resulting in little to no pressure loss)

Health & Cosmetic Benefits

Softer, healthier skin and hair
Relief from dry skin and scalp
Reduced fading in color-treated hair
Improved lathering and sudsing

INSTALLATION

1.Remove existing handle shower from shower faucet by unscrewing it,counterclockwise(Don’t unscrew shower arm)

2.Install the ECO-510 Filtered handle Shower on to the shower faucet by turning clockwise.

OPERATION

Before entering the shower:

1.Activate filter by turning the shower-water to “full hot’’

2.Cool to desired temperature before entering the shower, to ensure maximum free-chlorine removal, replace the model HRC Filter Cartridge every 3 months or 3,000 gallons, whichever come first

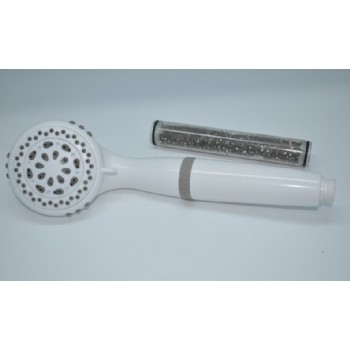

CARTRIDGE REPLACMENT

The HRC filter cartridge should be replaced every 3,000 gallons or 3 month (Whichever comes first)

1.Unscrew the shower filter housing.

2.Remove the used cartridge

3.Make sure both O-rings are sealed in the O-ring grooves, Apply a small amount of lubricant, such as petroleum jelly, to each O-ring.

4.Install a new HRC filter cartridge

5.Reassemble the filter

PERFORMANCE DATA:

Rated Service Flow-9.5 Liters per minute/2.5 gallons per minute

Rated service Life at 95% free chlorine removal-11385 liters/3000 Gallons

Maximum working pressure-860 kilo pascals/125 pounds per square inch

Maximum operating temperature-40°Celsius/ 120 Fahenheit

Installation- Attaches to shower-arm. No Tools Required

NOTE:

While testing was performed under standard laboratory condition, actual performance may vary

This system is not intended to used as a drinking water treatment unit

Both the system and installation must comply with applicable state and local regulations.
