5-pure spray filtered shower handles

Shower Filter

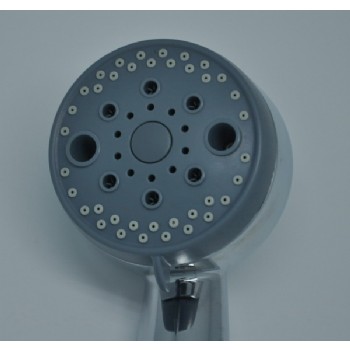

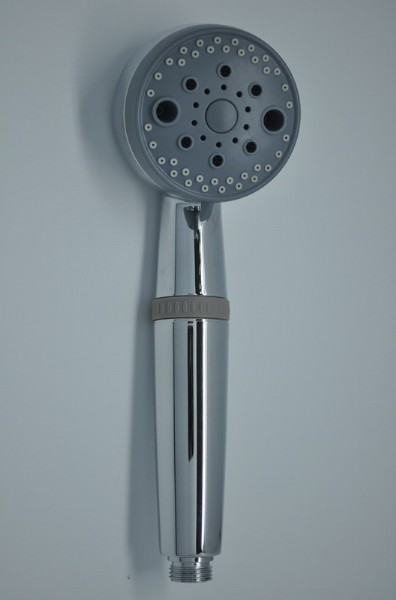

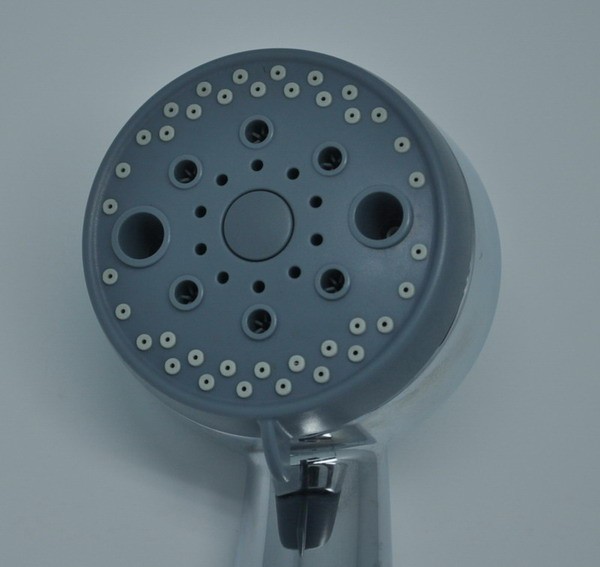

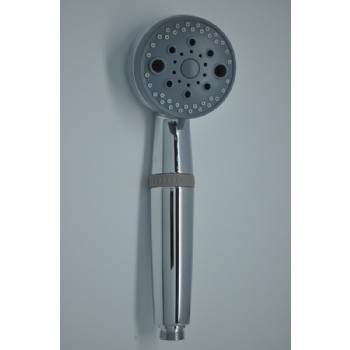

5 Pure-Spray Filtered shower handle(ECO-511)

5 Pure-Spray Filtered shower handle

ItemNo.: ECO-511

5 Pure-Spray settings adjustable shower handles

Anti-Scaling Spray-Tips

Brass Swivel-Ball for easy mounting and durability
Available in White or Chrome
Built-In Filtration System with Replaceable filter

Softer. healthier skin and hair

Relief from dry skin and scalp

Reduced fading in color-treated hari

Improved lathering and sudsing

Model HHC Replacement Filter Life: 3 Months or 3,000 Gallons - whichever comes first.

Back

The Filtered Shower handles includes an 5-pure spray setting shower handles, HRC shower filter cartridge for a clean and fresh shower

Removes chlorine, heavy metals, vocs, pesticides, herbicides, hydrogen sulfide (rotten egg smell), iron oxide, and even scale from your shower water

INSTALLATION

1. Remove existing shower handles from shower hose by unscrewing it,counterclockwise(Don’t unscrew shower hose)

2. Install the ECO-511 Filtered Shower handles on to the shower hose by turning clockwise.

OPERATION

Before entering the shower:

1. Activate filter by turning the shower-water to “full hot’’

2. Cool to desired temperature before entering the shower, to ensure maximum free-chlorine removal, replace the model HRC Filter Cartridge every 3 months or 3,000 gallons, whichever come first

CARTRIDGE REPLACMENT

The HRC filter cartridge should be replaced every 3,000 gallons or 3 month (Whichever comes first)

1. Unscrew the shower filter housing.

2. Remove the used cartridge

3. Make sure both O-rings are sealed in the O-ring grooves, Apply a small amount of lubricant, such as petroleum jelly, to each O-ring.

4. Install a new HRC filter cartridge

5. Reassemble the filter

PERFORMANCE DATA:

Rated Service Flow-9.5 Liters per minute/2.5 gallons per minute

Rated service Life at 95% free chlorine removal-11385 liters/3000 Gallons

Maximum working pressure-860 kilo pascals/125 pounds per square inch

Maximum operating temperature-40°Celsius/ 120 Fahenheit

Installation- Attaches to shower-arm. No Tools Required

NOTE:

While testing was performed under standard laboratory condition, actual performance may vary

This system is not intended to used as a drinking water treatment unit

Both the system and installation must comply with applicable state and local regulations.
