Filtered Shower head

Shower Filter

Filtered shower head

ItemNo.: ECO-513

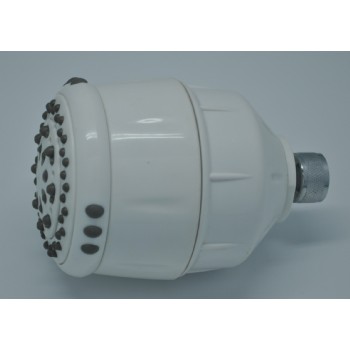

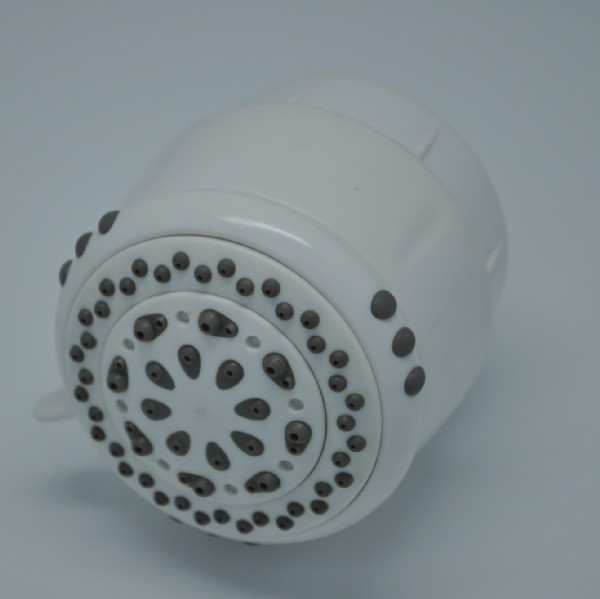

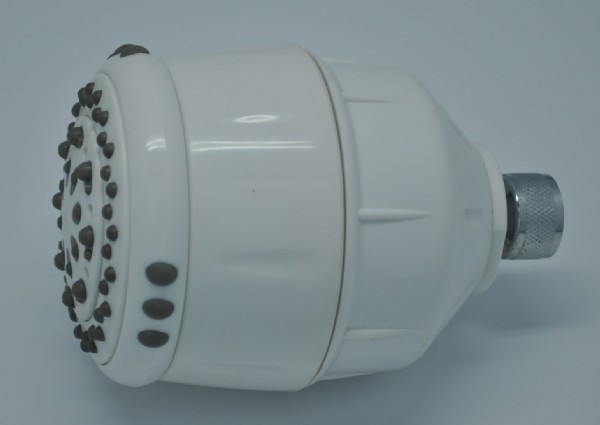

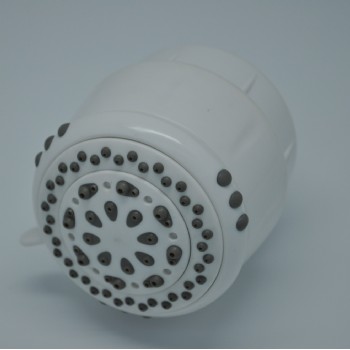

Filtered Shower head That removes chemicals and contaminants from your shower water
5-Pure Spray Sttings Adjustable shower head with Shower Filter Cartridge
Fine Mist,Fine/Full Spray,Full Spray, Full /Massage Spray.Massage Spray.
Brass Swivel-Ball for easy mounting and durability
Available in White or Chrome

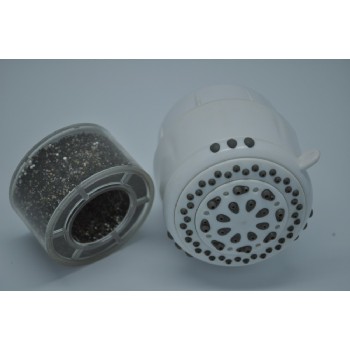

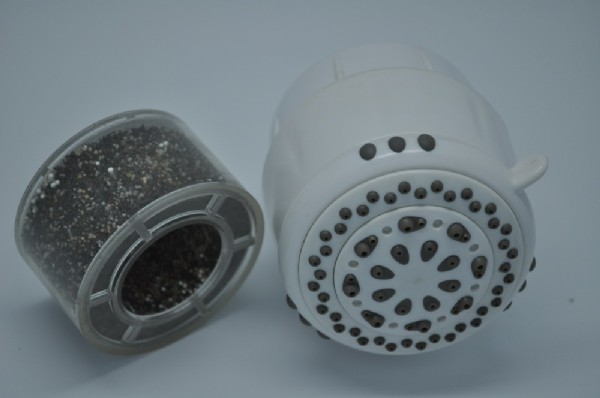

Built-In Filtration System with Replaceable filter

Back

The Filtered Shower head includes an 5-pure spray setting showerhead, FRC shower filter cartridge for a clean and fresh shower

Removes chlorine, heavy metals, vocs, pesticides, herbicides, hydrogen sulfide (rotten egg smell), iron oxide, and even scale from your shower water

INSTALLATION

1. Remove existing shower head from arm(pipe) by unscrewing it,counterclockwise(Don’t unscrew shower arm)

2. Install the ECO-513 Filtered Shower Head on to the shower arm by turning clockwise.

OPERATION

Before entering the shower:

1. Activate filter by turning the shower-water to “full hot’’

2. Cool to desired temperature before entering the shower, to ensure maximum free-chlorine removal, replace the model FRC Filter Cartridge every 6 months or 5,000 gallons, whichever come first

CARTRIDGE REPLACMENT

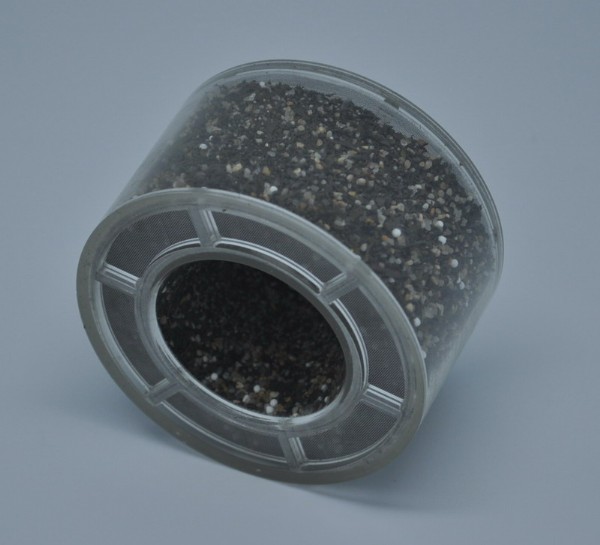

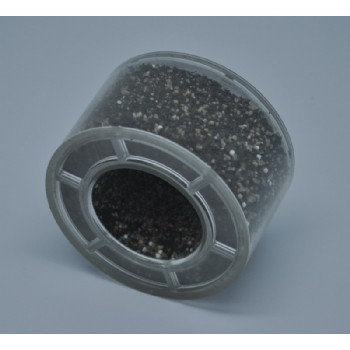

The FRC filter cartridge should be replaced every 5,000 gallons or 6 month (Whichever comes first)

1. Unscrew the shower filter housing.

2. Remove the used cartridge

3. Make sure both O-rings are sealed in the O-ring grooves, Apply a small amount of lubricant, such as petroleum jelly, to each O-ring.

4. Install a new FRC filter cartridge

5. Reassemble the filter

PERFORMANCE DATA:

Rated Service Flow-9.5 Liters per minute/2.5 gallons per minute

Rated service Life at 95% free chlorine removal-18975 liters/5000 Gallons

Maximum working pressure-860 kilo pascals/125 pounds per square inch

Maximum operating temperature-40°Celsius/ 120 Fahenheit

Installation- Attaches to shower-arm. No Tools Required

NOTE:

While testing was performed under standard laboratory condition, actual performance may vary

This system is not intended to used as a drinking water treatment unit

Both the system and installation must comply with applicable state and local regulations.
